Mobile station / up to 20 m
Cell on Wheels – COW
Internet anytime and anywhere.
A versatile mobile station with a height of up to 20 meters. It combines robustness, flexibility, and durability.
Key Benefits
Quick installation
Can be installed in 1–2 hours without the need for construction work
Flexibility
Modular design – adapting to technology and terrain
Robust construction
High load capacity for a full range of BTS equipment
24/7 support
24/7 Monitoring and Service
Long service life
Still in operation even after 20 years
Use Cases
Major Events
Temporary network capacity expansion during festivals, sporting events, and large gatherings without overloading the infrastructure.
Network Maintenance
Quickly ensure mobile service coverage during upgrades, repairs, or outages without interrupting operations.
Construction of a new site
Temporary coverage in areas where new infrastructure is being built, without having to wait for its completion and the launch of services.
Model series
The COW series offers several models based on mast height and load capacity:

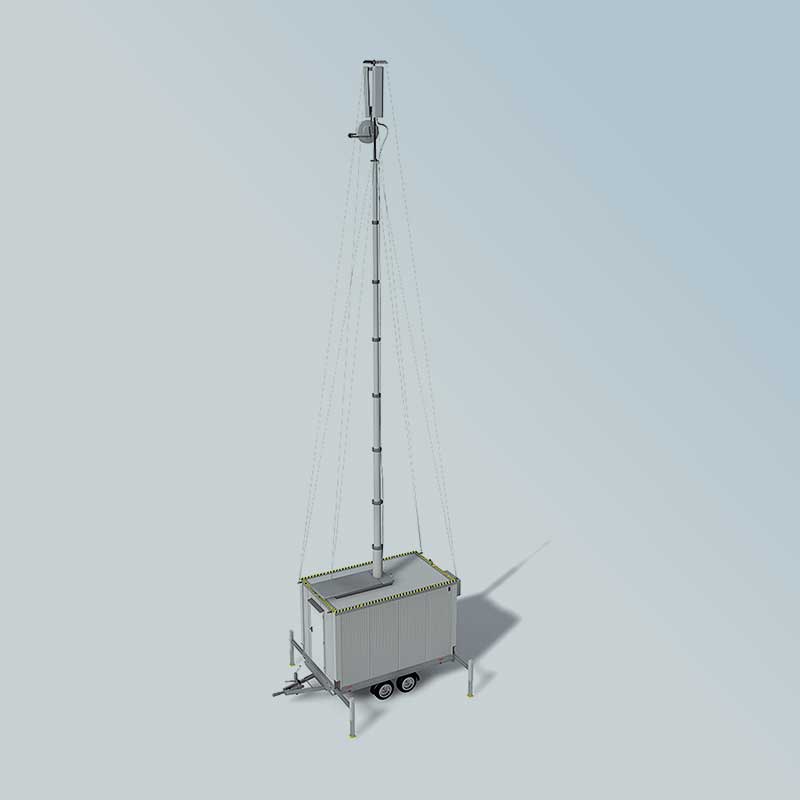

COW11 - COW20
- Total height: up to 20 m
- Installation time: max. 1–2 hours (2 workers)
- Antenna system area: up to 3 m²
- Head load: up to 180 kg
- Dimensions: up to 4.0 × 2.5 × 3.4 m
- Footprint: from 4.2 × 4.2 m
- Wind speed: 24 m/s (up to 36 m/s)
- Total weight: < 3.5 t

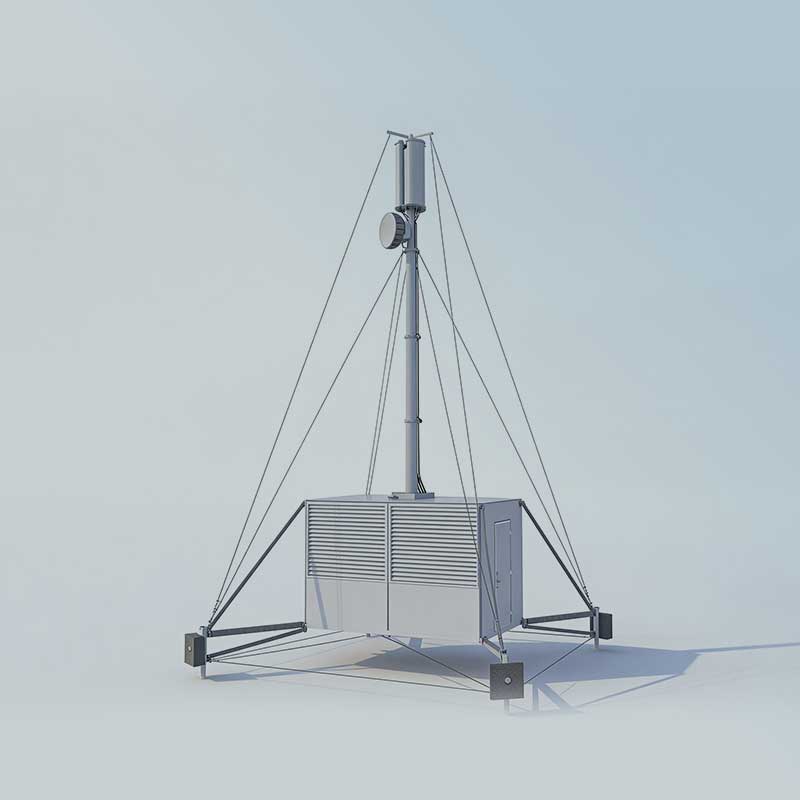

COW11 HD
- Total height: up to 11 m
- Installation time: 2 hours (2 workers)
- Antenna system area: 3 m²
- Head load: 220 kg
- Dimensions: up to 4.0 × 2.5 × 3.4 m
- Footprint: 6.0 × 6.0 m
- Wind speed: 24 m/s (up to 36 m/s)
- Total weight: < 7 t

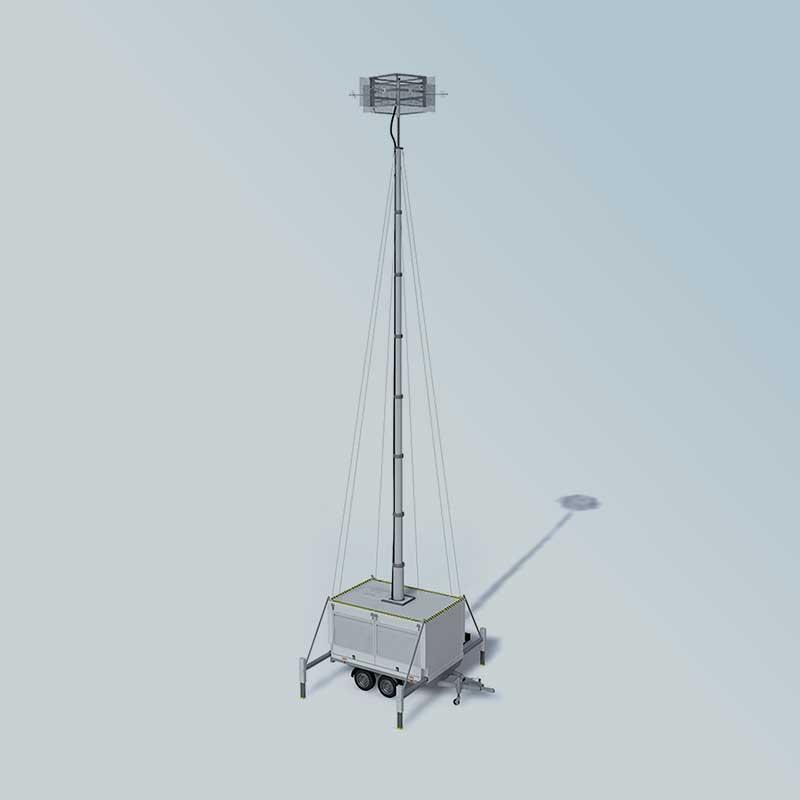

COW15 COMPACT
- Total height: up to 15 m
- Installation time: 2 hours (2 workers)
- Antenna system area: 2.3 m²
- Head load: 180 kg
- Dimensions: 3.6 × 2.5 × 2.6 m
- Footprint: 6.0 × 6.0 m
- Wind speed: 24 m/s (up to 41 m/s)
- Total weight: < 3.5 t

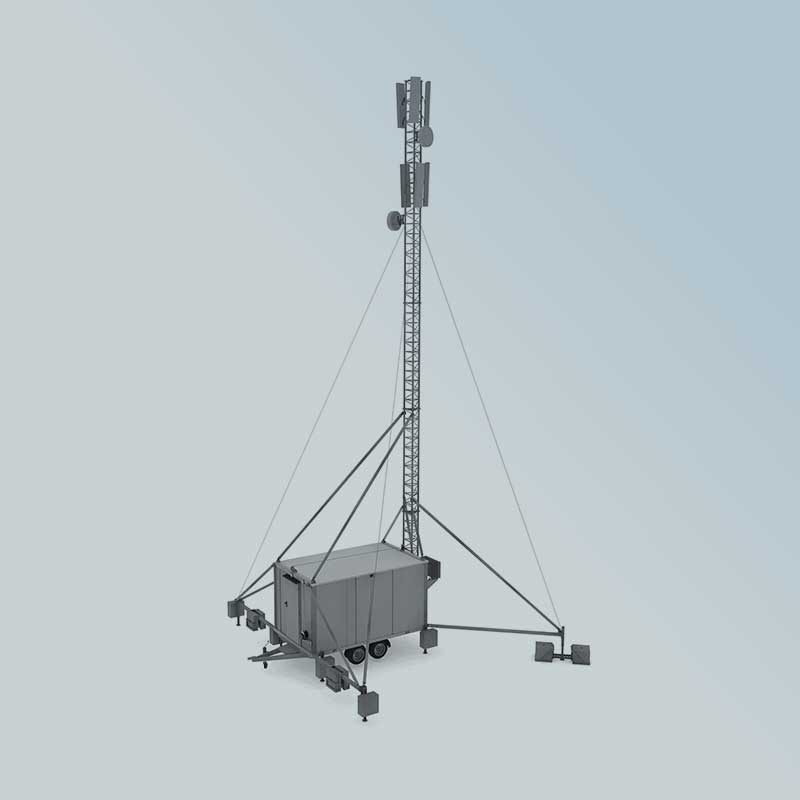

COW TPS18
- Total height: up to 18 m
- Installation time: 2 hours (2 workers)
- Antenna system area: 3 m²
- Head load: 200 kg
- Dimensions: approx. 4.5 × 2.5 × 3.9 m
- Footprint: 8.0 × 8.0 m
- Wind speed: 24 m/s (up to 41 m/s)
- Total weight: < 3.5 t
COT18
- Total height: up to 18 m
- Installation time: 2 hours (2 workers)
- Antenna system area: 2 m²
- Head load: up to 120 kg
- Dimensions: 6.5 × 2.5 × 3.9 m
- Footprint: from 6.5 × 6.5 m
- Wind speed: 24 m/s (up to 42 m/s)
- Total weight: < 11.9 t
COW ensures reliable connectivity, from large-scale events to emergency situations.
Quick to build, built to last.
